Linear Glass Scale By SINO High-Precision 2-Axis SDS2MS Digital Readout Display

High-Precision 2-Axis SDS2MS Digital Readout Display With Linear Glass Scale By SINO

verview of SDS 2MS Dual Axis Digital DRO and KA Grating Ruler

1. Dual axis DRO: With this kit, you can simultaneously control and observe the movement of the machine along two axes, such as the X and Y axes in a milling machine. This allows you to evaluate the working progress of the equipment and determine whether the machine tool has reached the user's target position.

2. Magnetic ruler encoder system: Magnetic technology is used in the KA linear ruler encoder system. Relatively precise dynamic readings may be achieved by working with the DRO display unit and the magnetic glass scale that is mounted on the machine shaft. The equipment's location can be promptly reflected in this reading. Operators may respond promptly and assess if the machine tool's movement produces the desired effects with fast input.

3. Broad voltage range: The SDS 2MS DRO kit works well with a voltage range of 100 to 240 volts AC. Every gadget has an appropriate operating voltage, and it can only work correctly and assist users in taking precise measurements at predetermined points when the necessary voltage is attained.

4. User friendly interface: The DRO display unit has an easy-to-use interface consisting of buttons and a digital display screen. Users can choose different function buttons to switch between different measurement data to cope with complex working environments.

Capabilities possessed:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: 50 Hz to 60 Hz, AC 85 v to 250 v
2. 15w uses 25 va of electricity.
3. Assign the number to one or two locations.
4. Use eight meters of words and symbols to demonstrate how a signed seven display (two or three axes) outputs data information.
5. Net Weight: 2.9 lbs/1.3 kilogram
6. The EIA-422 open collector output signal, TTL input signal, and easy-to-use interface with programmable controller.
7. Permit the input signal frequency to be higher than 100 KHz.
8. Use 10 microns, 5 microns, 2 microns, 1 mu m, and 0.5 microns to link a resolution.

Product image /photos:

​

The rack in the picture is optioned, not standard product.

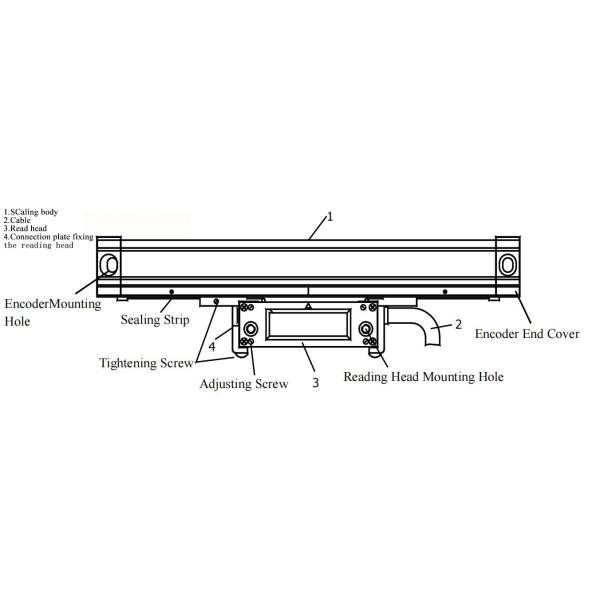

2 Axis Linear Glass Scale

High Precision Linear Glass Scale

SDS2MS Linear Glass Scale

Linear Glass Scale By SINO High-Precision 2-Axis SDS2MS Digital Readout Display Images
